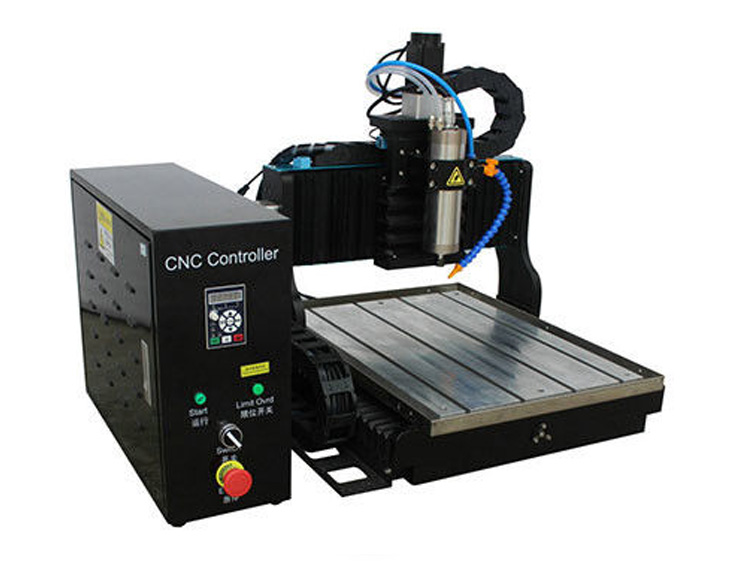

CNC Wax Seal Stamp Engraving Copper Machine



CNC3030F wax seal stamp engraving copper machinemain parameters:

【Mechanical part】

1. Dimension: 690mm × 700mm × 750mm (L × W × H)

2. Worktable size: 395X550 × 20mm (length × width × thickness)

3. Rack material: the whole machine for the 6061 aluminum alloy through the import CNC machining center precision machining, panel for the cnc processing T-slot aluminum tiles,

Surface all anodized. Non-market surface of the general processing of ordinary aluminum or aluminum, castings comparable.

4. Effective travel: X axis 280mm Y axis 280mm Z axis 100mm

5. Maximum workpiece thickness: ≤ 110mm (Z-axis bottom and table spacing)

6. Slide unit: Taiwan imported X axis Y axis Z axis Φ20 square rail

7. Transmission unit: three-axis use of new Taiwan imported TBI 1605 ball screw, nut

8. Rotary shaft four-axis (optional): reduction ratio 1: 6, the center height of 65mm. Standard three-jaw chuck, but also optional four-jaw chuck, special circumstances

customizable.

【Electronic Control】

1. Drive motor: the new high-speed closed-loop hybrid servo motor

2. Maximum blanking speed: 8000mm / min

3. Engraving speed: 50 ~ 8000mm / min

4. Processing accuracy: 0.01mm ~ 0.02mm

5. Spindle: Changsheng card 800W / 1500W / 2200W frequency conversion 4 bearing motor, ultra-low noise, high precision (diameter

To runaway ≤ 0.01mm), with 6mm and 12mm sandwich each one.

6. Speed: 2000 ~ 24000 rev / min,

7. Cooling: double water pump cycle cooling, automatic spray cutting system (water pump) water pump

8. System: mach3 or Viagra system (optional)

9. Step drive power: AC110V ~ 220V, 360W, the output DC36V10A Mingwei switching power supply

10. Input voltage: AC220V (can be customized AC110V)

11. Net weight: 50Kg (excluding packaging)

【Tips】

1. Compatible with Mach3 / Ivy NCStudio / TYPE3 / ArtCAM / Wentai / JDpaint carved and a variety of CAD / CAM soft

Pieces and so on

2. Instruction format: G code (tap, nc, ncc, text)

3. Users need to own a computer

【Complete standard list】

Engraving machine

2. supporting a control box

3.U disk one (including Mach3 / Weihong and other supporting carving software)

4. Toolbox one (including: engraving tool five, sandwich one, the pressure plate T-type screw nut four sets, pressure plate 4, a hex wrench set, a pump, a knife on the instrument supporting a fine two wrench wrench. )

5. A data line

6. One power cord.

Full set of ready-to-use.
